 Storm Dolly
Author Message
User avatar

Joined: Tue Jul 08, 2008 12:36 pm
Posts: 1787
Location: Antarctica/California/New Zealand
Post Storm Dolly

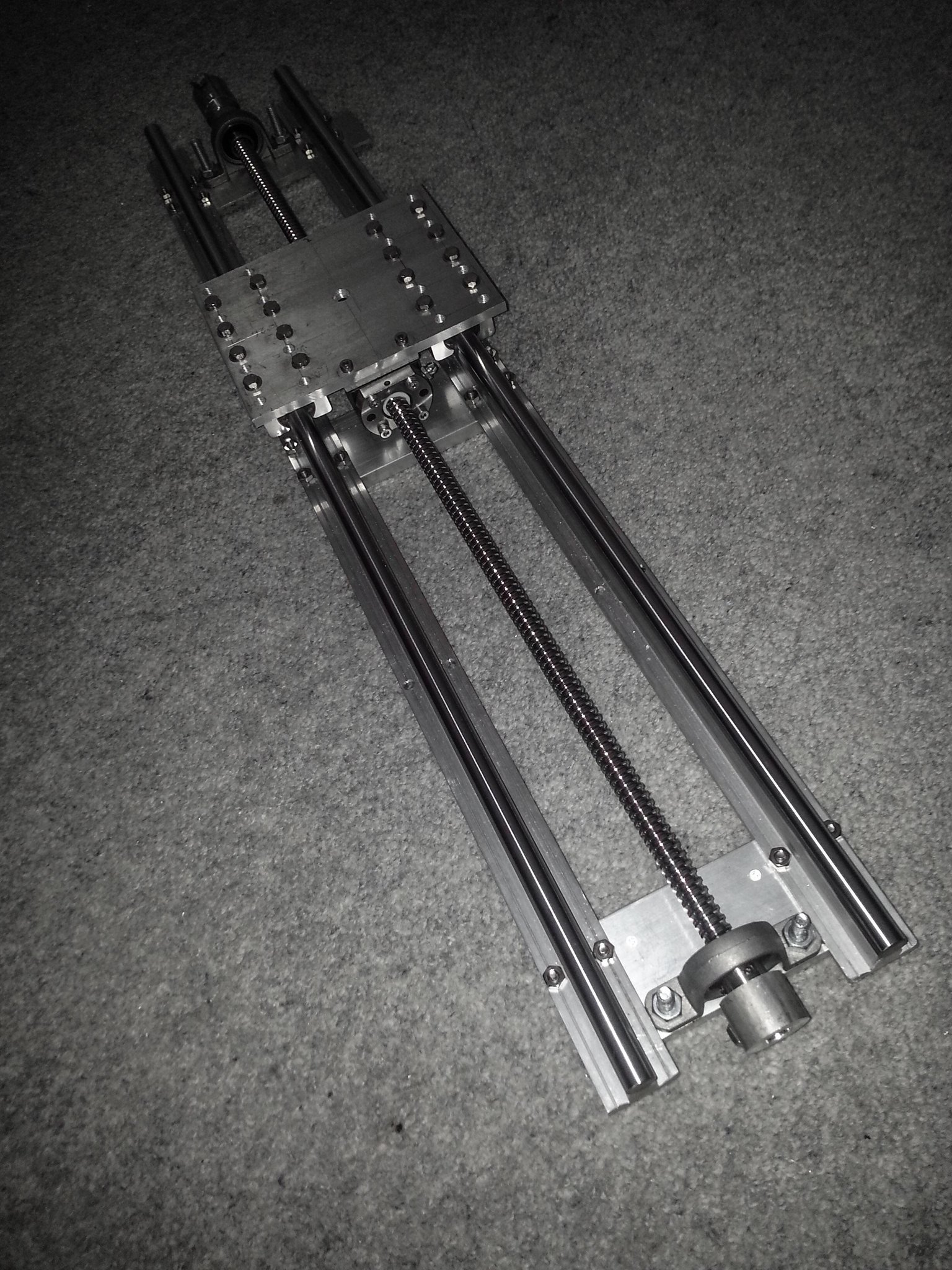

I wanted a dolly that would be rock solid in hurricane winds, reliable at -60c, and still easily transportable, so built this out of CNC parts from eBay.
Travel length is approx 650mm / 26"
About $150 in parts.
Still one or two minor tweaks to make like countersinking some of the bolts, but basically done.


_________________
Anthony Powell
"Antarctica: A Year On Ice" Feature Film
Vimeo Youtube Photos
Twitter Instagram Google+
Facebook Facebook Movie Page


Wed Apr 15, 2015 7:25 pm
Profile

Joined: Sat Nov 01, 2014 11:45 am
Posts: 23
Post Re: Storm Dolly
Looks as if you want to film with a CNC machine :-)
Anyway, looks rock solid. What wight?


Wed Apr 15, 2015 10:52 pm
Profile
User avatar

Joined: Tue Nov 24, 2009 7:55 am
Posts: 951
Location: UK
Post Re: Storm Dolly
I guess weather proofing the electrics requires quite a lot of consideration as well?

_________________
Smile, it gives your face something to do!

http://www.vimeo.com/user1214873/videos
http://www.youtube.com/user/MrReggub


Wed Apr 15, 2015 11:37 pm
Profile
User avatar

Joined: Tue Jul 08, 2008 12:36 pm
Posts: 1787
Location: Antarctica/California/New Zealand
Post Re: Storm Dolly
Weight is about 4Kg / 9#
The electronics I use are pretty easy to weatherproof in a sealed container, the only exposed part will effectively be the motor which can be sealed reasonably well.

_________________
Anthony Powell
"Antarctica: A Year On Ice" Feature Film
Vimeo Youtube Photos
Twitter Instagram Google+
Facebook Facebook Movie Page


Thu Apr 16, 2015 3:40 am
Profile
User avatar

Joined: Wed Nov 11, 2009 10:45 am
Posts: 1685
Location: Merritt Island, Florida, Estates Unitas
Post Re: Storm Dolly
Very cool! That should remain straight and also keep the trolley form rattling around in the wind. Did you actually have experiences where high winds would wiggle the trolley on its track? My Stage Zero is pretty solid and the grip of the linear bearings on the sides can be tightened by tightening the screws that hold their aluminum angle to the flat trolley deck. Do you plan on adding mounting holes in its base for lag bolts to fasten it to the ice or ground? If you bring a portable drill and some expanding anchors it could be screwed down real good. Normally I wouldn't suggest that, but given all the effort that went into making the rest of it rock solid......


Thu Apr 16, 2015 5:27 am
Profile
User avatar

Joined: Mon Nov 22, 2010 1:18 pm
Posts: 1294
Post Re: Storm Dolly
Those rails are very good got some from China recently a lot cheaper and a lot better the Igus which i will never use again. Only down side is a tad heavy i got the 16mm ones for my crane to ride on .
Slightly off topic but hey that's me and off topic seems more fun these days !
Just built this for a job sort of a dolly but its in fact a model mover for a very large animation puppet . Bit of a gimbal and slider really as you can see bit Heath Robinson but it does the job .
[flickr]Image2015-04-16 15.46.09 by DISPLACEMENT101, on Flickr[/flickr]
[flickr]Image2015-04-16 15.48.39 by DISPLACEMENT101, on Flickr[/flickr]
D1


Thu Apr 16, 2015 7:23 am
Profile

Joined: Thu Feb 18, 2010 4:47 am
Posts: 388
Location: St Gallen, Switzerland
Post Re: Storm Dolly
I`m trying to picture the scene: hurricane winds, -60°C (with or without wind chill?) and yet nothing landing on the lens to spoil the time lapse.

I think I`ll stick to the Alps in winter. Much the softer option!


Fri Apr 17, 2015 9:25 am
Profile
User avatar

Joined: Tue Jul 08, 2008 12:36 pm
Posts: 1787
Location: Antarctica/California/New Zealand
Post Re: Storm Dolly
Yup, without wind chill. Generally it is so dry in the winter that things don't stick much, and tends to get blown away, so it is not much of a problem. However the battery compartment and CF compartment getting packed solid with snow inside the camera can be a problem from the sheer force of the wind.

_________________
Anthony Powell
"Antarctica: A Year On Ice" Feature Film
Vimeo Youtube Photos
Twitter Instagram Google+
Facebook Facebook Movie Page


Sat Apr 18, 2015 8:45 pm
